Sprinter Adventure Van Build – Bluetooth ‘House’ Stereo System (bypassing head unit)

Small wireless battery powered speakers are pretty ubiquitous these days and offer decent sound for the cost, but we thought it would be much nicer to enjoy music in our camper van from our van’s upgraded stereo system. After all, we did invest in a pretty nice sound system.

TL:DR

We wired in a secondary “turn-on” circuit for our amp and added a second hardwired bluetooth receiver to allow us to play music through our stereo, bypassing the factory Audio15 head unit and running off our “house” power system in our adventure van. The audio signals are switched between Audio15 head unit and the Bluetooth receiver using a standard DPDT switch.

The Goal: Stand alone adventure van sound system that runs on ‘house’ power

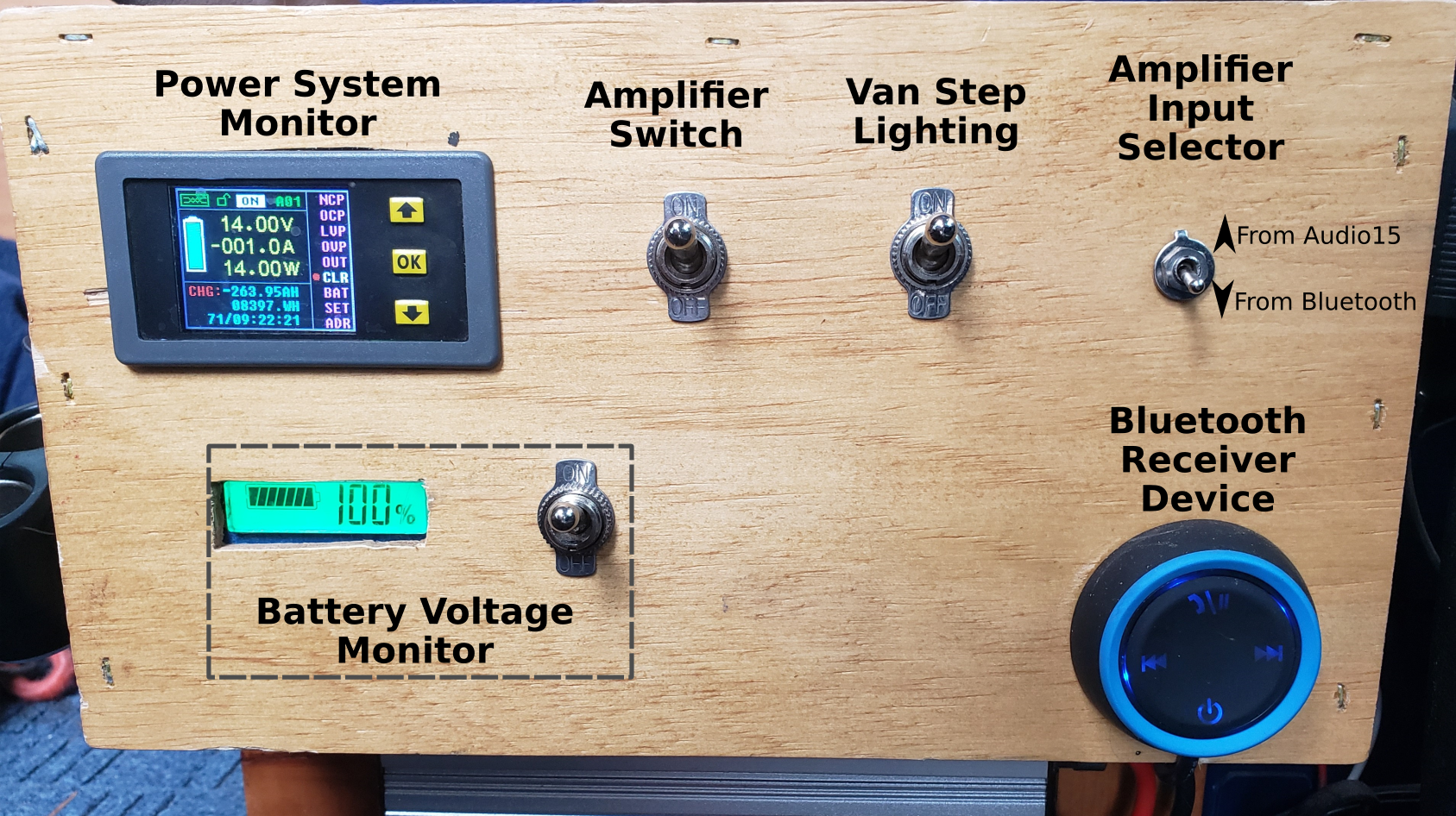

The stock stereo (Audio 15) head unit on the sprinter is powered by the starter battery and controlled (on/off) via the CAN bus. I tried to come up with a way to allow it to be powered from the ‘house’ batteries (our van’s battery bank) and turned on with both the ignition and a flip of a switch, but in the end this didn’t seem to be practical (likely easier with an aftermarket head unit). So instead I used a separate Bluetooth receiver wired directly into our aftermarket amp. At the flip of a couple of two switches we can turn on the amp and re-route the amp input from the stock head unit to the bluetooth receiver.

A few things needed to happen to make this work:

  1. A bluetooth receiver needs to be wired into the aftermarket amplifier, in parallel with the signal coming from the dashboard head unit / stock radio
  2. Bluetooth receiver needs power (preferably switched)
  3. Amp needs an alternative switched ‘turn on’ signal, separate from ignition
  4. Related to #1 above, the audio signals themselves need to be switched, in order to prevent the audio sources from being crossed (and making both systems sound terrible)

Tools:

  • soldering iron
  • Wire strippers, wire cutters, and the usual electrical gear

Materials:

The Procedure

Again, the goal is to have ‘house’ music inside the van powered by our ‘house’ battery bank, bypassing the head unit, but still using our aftermarket amplifier/sound system.

I’ve provided lots of additional details below, but the basic wiring to achieve this goal is provided in the diagram below. (Downloadable PDF, here)

The diagram and this post references items in my specific setup (audio15 head unit connected to an amplifier via an LC2 line-out converter), but this should work with any head unit and amplifier setup.

Powering and Turning on the Devices

Power must be provided to the Bluetooth receiver as well as a new “turn-on” signal sent to the amp. This is fairly easy to wire up, as it’s essentially just another 12v circuit from the van’s ‘house’ fuse panel with a switch on it for control. But to make it more complicated I wanted to have the new Bluetooth receiver only turn on when I flipped the switch, not any time the amp was turned on (since the amp turns on with vehicle ignition as well).

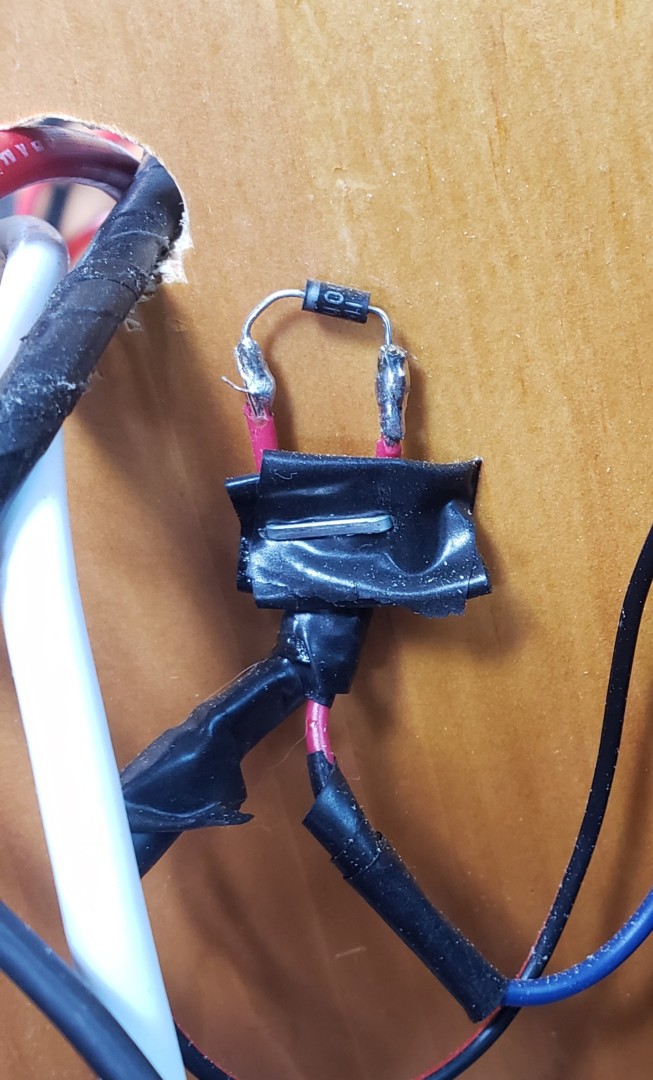

While it sounds fancy, a diode is just a tiny device

To achieve this, I used a diode. A diode is a semi-conductor device that essentially acts as a one-way switch for current running through a circuit. The diode, when used as shown in the above diagram, allows current to flow to the amp ‘turn-on’ input when I flip the switch, but does not allow current to flow back and turn on the Bluetooth device, when initiated by the ignition.

As shown, switched 12V power should feed both the Bluetooth Receiver and provide a secondary amplifier ‘turn-on’ signal (in addition to the signal from ignition discussed in previous posts). The diode is placed between the new 12V power switch and the amplifier.

Audio Signal Wiring and Switching

The audio signal wiring is a little more complex and requires the use of a 6-terminal Double-Pole-Double-Throw (DPDT) switch. An “On-On” type switch is preferred, because audio can always be routed ‘somewhere’, but an “On-Off-On” style switch is also fine (actually it’s what I am using – I just never use the middle ‘off’ position)

Connecting both audio signal inputs to the amplifier in parallel, without switching, caused audio issues (see misc. notes at the end of this post) – so a switch is required/recommended.

Using this switch for stereo audio signals is a little different than when using it for power, but it is just as effective. The diagram below shows how I wired it up. Just like wiring up power, we are switching the positive side only and allow the ground to pass around the switch. Since this is audio and we want to maintain stereo sound we have to do this for both the left and right audio signal channels.

  1. Provide stereo audio signal wires from all three elements of the system:
    • From the Audio15 head unit (via the LC2 in my case)
    • From the new Bluetooth receiver
    • From/to the amplifier
  2. Strip the audio signal wires for both left and right channels and separate the positive and negative wires.
  3. Wire the positive terminals as shown above.
    • “Audio In 1” is from the Audio15 head unit.
    • “Audio In 2” is from the Bluetooth Receiver. “
    • “Audio Out” is to the amplifier inputs
  4. Ground (-) audio wires for each channel (left and right) can all be connected together (left grounds connected together and right grounds connected together).

Wiring as shown allows the audio from my Audio15 head unit to be connected to the amp when the switch is in the ‘up’ position, isolating the Bluetooth Receiver. And the opposite when the switch is in the down position.

Yes, it seems very complicated (at least to me), but taking it wire by wire it really isn’t that bad.

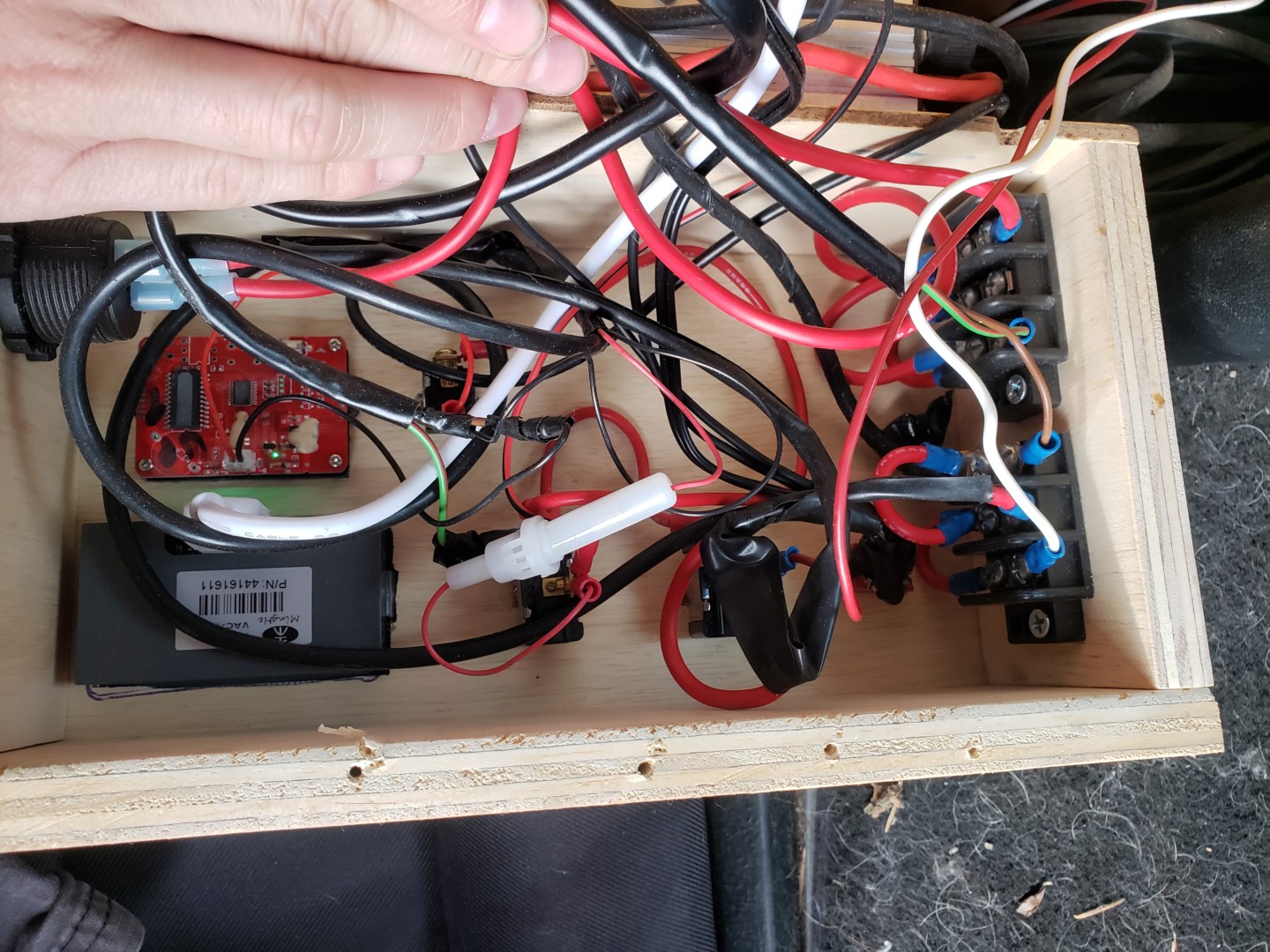

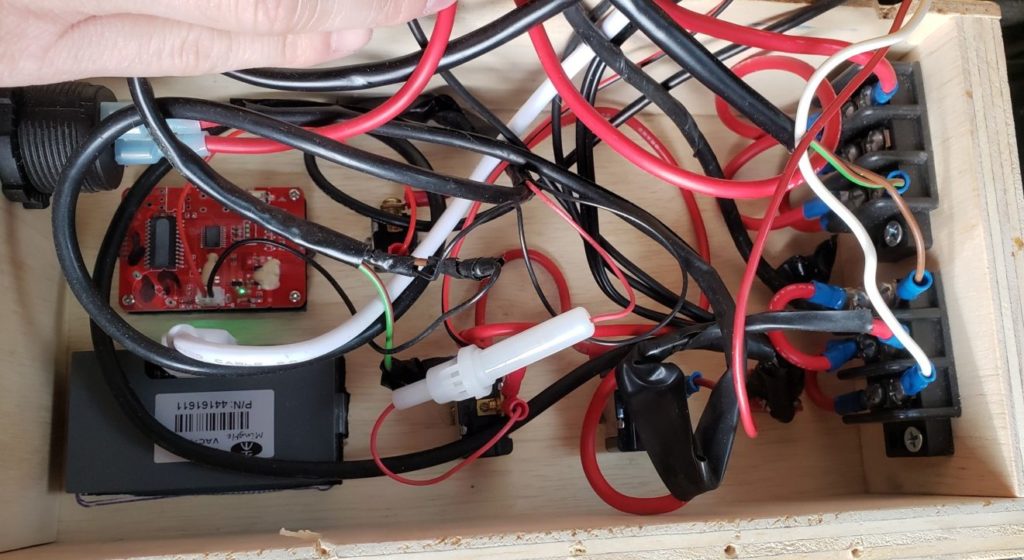

Yeah, its a mess of wires – but it all works 🙂

Other Misc. Notes

Originally, I had used an RCA splitter (two RCA inputs/female to one RCA output/male) to bring both sound devices into the inputs of the amp. While a lot simpler than the wiring I ended up with, this did not work. Allowing audio signals to pass through both sides of the circuit cause severe distortion of the audio and a significant reduction in the audio volume (and quality). As such, utilizing this simplification is not recommended. YMMV.

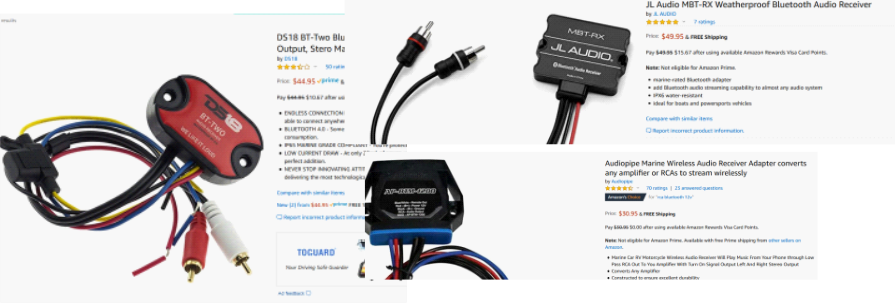

As stated previously, the Bluetooth unit I used is no longer available, here are some other options which look good.

But there are still a lot of other options available. Here are a few that I found that looked appropriate: one, two, three. Since your phone or related Bluetooth transmitting device is providing the media and controls, onboard controls on the receiver aren’t really necessary.

Lastly, originally I had our rear speakers mounted into the fixed wheel well boxes. This was great for just driving around, but not amazing for when the van was parked – especially for when we were hanging out outside the van and desiring music. So we bought pre-fab speaker boxes and put our 6×9 speakers in those. Connecting the boxes with extra long speaker wires allows us to move the speakers around as desired. They clip in to designated positions when driving – but when parked we can, for example, move them into the door to project the sound outward.

Rear 6×9 speakers in speaker boxes. You can also just barely see the LED ‘Van Step Lighting’ in the door well. These lights are pretty nice when getting into and out of the van. The switch (which is next to the stereo input switch) can be reached when standing on the ground outside the van.
